The RPB Z-Link Metal Spray Helmet offers numerous configurations so you can wear it your way. It serves as the most versatile respirator on the planet. Designed with your comfort in mind, the Z-Link ensures you’ll always be protected for life’s best moments. The Z-Link’s large visor acts as the framework for multiple accessories to easily transform your protection to suit your environment. With the visor’s widened perspective, this provides operators with an exceptional downward and peripheral field of view and with the hinge visor opening, this gives operators the ability to easily communicate outside the work environment. 5 lens options are also available (including a shade 5 lens). To further increase your comfort and stability, the Z-Link Metal Spray Helmets can also be fitted with the Comfort-LinkTM padding system (See Attachments & Accessories for more information). Experience complete protection and versatility with the RPB Z-Link Metal Spray Helmets.
The Z-Link offers the user superior protection in all key areas:

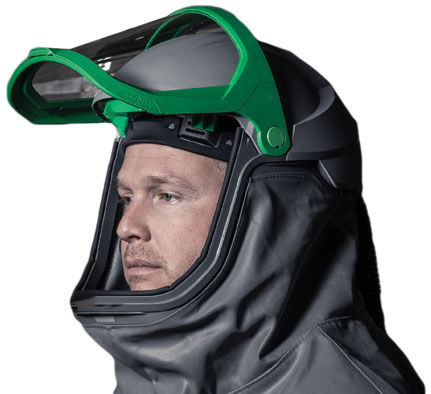

Z-Link

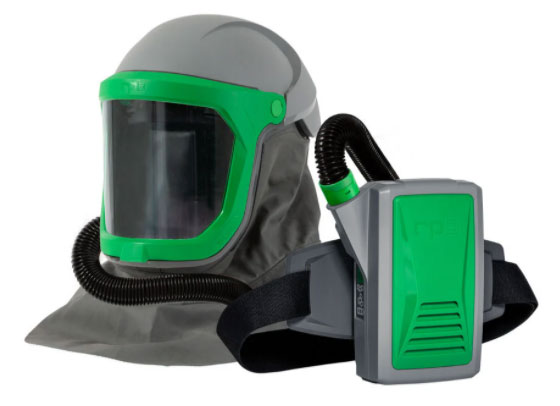

Helmet pictured with PX5 Powered Air Respirator
The Z-Link’s large visor acts as the framework for multiple accessories to easily transform your protection to suit your environment.
Features & Benefits
- Optimum vision and high velocity impact protection with large optically-clear safety lens (replaceable spare part).
- Choice of 5 anti-fog and scratch resistant ANSI Z87+ (EN166) lenses: Premium clear, Green Tint (Shade 5), Yellow Tint, Black Tint, and Mirror Tint.
- Tear-off lens system ensures you have a clear field of view at all times.
- Choice of 5 anti-fog and scratch resistant ANSI Z87+ (EN166) lenses: Premium clear, Green Tint (Shade 5), Yellow Tint, Black Tint, and Mirror Tint.
- Air flow and distribution is fully adjustable with the air deflector system to suit personal preference.
- Air supply circulates throughout headtop, moving over your skin to cool you down, enhancing your experience of comfort.
- Fixed jaw ensures secure cape attachment.
- Vision-LinkTM light mount point.
- ANSI Z89.1 certified head protection (EN397).
- Visor hinges open for easy communication with team (outside of respiratory hazards).
- Padded interior with adjustable ratchet system ensures a perfect customized fit that supports movement, increasing comfort and productivity.
- The optional Comfort-LinkTM padding system provides further comfort and stability.
- Compatible with RPB Comms-LinkTM in-helmet communication system.
- 3 cape materials available: Tychem 2000, Tychem 4000 or Zytec FR.
- FR breathing tube cover available to increase the life of the breathing tube.
- All parts can be purchased individually for easy maintenance and servicing.
Specifications
| Operating Temperature | -10oC to 60oC |
| Storage Temperature | -10oC to 45oC <90%RH |
| Noise Rating | NRR: 25 (when used with the standard side pads)
NRR: 41 (when used with the 18-533 ear defenders and bell-shaped earplugs) |
| Weight |
Z-Link with FR Shoulder Cape and No Side Pads: 1.07kg |
Certifications
- ISO9001 Certified Company
- NIOSH – PAPR & SAR Type C
- ANSI – S3.19 Hearing Protection (Only in conjunction with 18-533 earmuffs).
- ANSI – Z89.1 Hard Hat Protection – Type 1 Class C
- ANSI – Z87+ Eye & Face Protection
- BSI Certified Product
- AS/NZS 1716:2012, BMP #714303 – Respiratory Protection.
- AS/NZS 1801:1997, BMP #714306 – Hard Hat Protection (Not all configurations conform to this standard. Please visit rpbsafety.com for more details).
- AS/NZS 1337.1:2010, BMP #714304 – Eye & Face Protection.
- CE2797
- EN14594:2005 3B, EN12941:1998 +A2:2008 TH3/2/1 P R SL – Respiratory Protection.
- EN352-3:2002 – Hearing Protection.
- EN397:2003 + A1:2009 – Hard Hat Protection
- EN166:2001 Class 1B – Eye & Face Protection
- CSEI Certified Model
- CSA Z94.3-15 – Eye & Face Protection – Class 7D Respirator Facepiece.

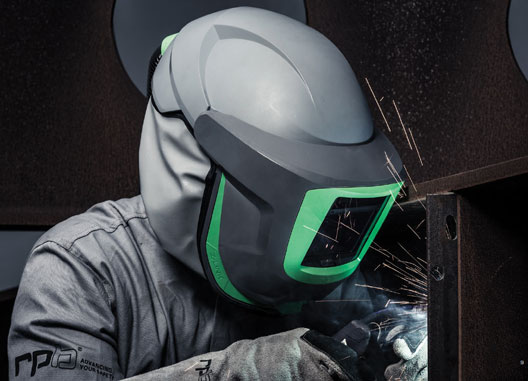

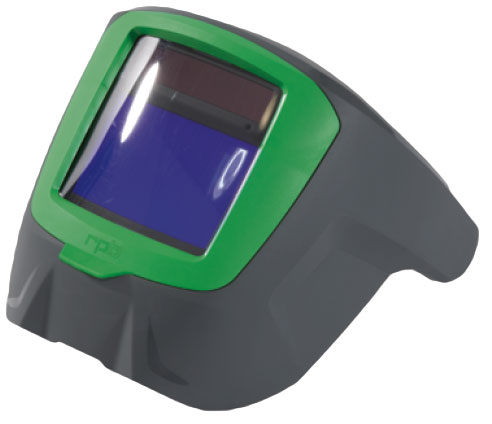

Z-Link+
The Z-Link+ is an optional attachment accessory for the Z-Link. It is intended for use in heavy industry welding (where hard hat is required) and Arc Spray/Metallisation. The Z-Link+ does not provide respiratory protection when not used in conjunction with the RPB Z-Link.
Features & Benefits
- The Z-Link visor weighs just 380g including ADF lens.
- This can be easily removed for extended periods where just grinding is required.
- Large welding auto darkening filter with a 1.1.1 rating. Variable auto darkening lens (shades 3, 5, or 9-13). Replaceable impact and ADF lenses for ease of maintenance.
- Optional magnifying lens available.
- Z-Link+ visor attaches directly onto the main grinding visor, enabling you to seamlessly switch from welding to grinding while maintaining respiratory protection.
Specifications
| Operating Temperature | -5oC to 55oC (ADF Lens) |
| Storage Temperature | -20oC to 70oC (ADF Lens) |
| Viewing Area | 67.6 x 98.8mm |
| Open Shade State (ADF Lens) | 3 (Bright Mode) |
| Closed Shade State (ADF Lens) | 9-13 (Dark Mode) |
| Switching Time from Light to Dark (ADF Lens) |
0.1ms (23oC)
0.1ms (55oC) |
| Switching Time from Dark to Light (ADF Lens) |
0.15s/1.0s |
| Classification in Accordance with EN379 | Optical Class = 1
Scattered Light = 1 Homogeneity = 1 Viewing Angle Dependence = 2 |
| Weight |
380g Z-Link+ with ADF Lens |
Certifications
- ISO9001 Certified Company
- NIOSH – PAPR & SAR Type C
- ANSI – S3.19 Hearing Protection (Only in conjunction with 18-533 earmuffs).
- ANSI – Z89.1 Hard Hat Protection – Type 1 Class C
- ANSI – Z87+ Eye & Face Protection
- ANSI – Z87W – Welding Eye Protection
- BSI Certified Product
- AS/NZS 1716:2012, BMP #714303 – Respiratory Protection.
- AS/NZS 1801:1997, BMP #714306 – Hard Hat Protection (Not all configurations conform to this standard. Please visit rpbsafety.com for more details).
- AS/NZS 1337.1:2010, BMP #714304 – Eye & Face Protection.
- AS/NZS 1338.1:2012, BMP #714305 – Welding Eye Protection
- CE2797
- EN14594:2005 3B, EN12941:1998 +A2:2008 TH3/2/1 P R SL – Respiratory Protection.
- EN352-3:2002 – Hearing Protection.
- EN397:2003 + A1:2009 – Hard Hat Protection
- EN166:2001 Class 1B – Eye & Face Protection
- EN379:2003 – Welding Eye Protection
- CSEI Certified Model
- CSA Z94.3-15 – Eye & Face Protection – Class 7D Respirator Facepiece.

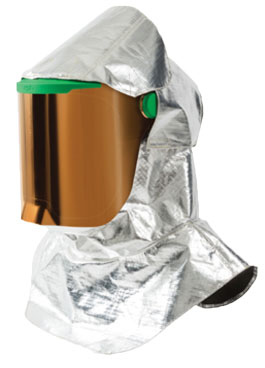

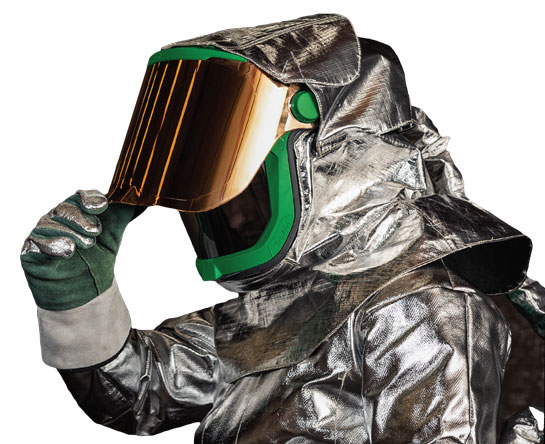

Z-Link Radiant Heat
Utilizing the Z-Link Metal Spray Helmet framework, the RPB Radiant Heat Kit is an optional visor and cape attachment for high heat applications such as foundries, steel mills, arc flash and glass manufacturing. It allows the user to quickly add on the high heat attachments to the Z-Link framework for any radiant heat and flame protection while maintaining APF 1000 (TH3) respiratory protection.
Features & Benefits
- Gold coated visor reflects radiant heat, minimising heat transfer while ensuring eye protection. Visor options include anti-scratch, gold coated (pictured above), anti-scratch IR5 gold coated, and IR5.
- Large visor lift tab enables you to easily raise and lower visor while wearing gloves.
- Airflow is dispersed throughout your breathe zone, as well as over your head, neck, and upper body to aid in cooling.
- Integrated hard hat protection.
- Aluminized flame-resistant shoulder cape, top cover, and rear cover protects you from splashes, sparks and radiant heat.
- Clip-on visor requires no tools for easy detachment and replacement.
- Secured cape ensures the hood moves with you for greater range of movement.
- Aluminized breathing tube cover is available to increase the life of the breathing tube.
Specifications
| Operating Temperature | -10oC to 93oC |
| Storage Temperature | -10oC to 45oC <90%RH |
| Assigned Protection Factor | NIOSH: APF 1000+
CE/AS/NZS: APF 40 – TH2 |
| Weight |
|
Certifications
All Z-Link certifications apply.
- ISO9001 Certified Company
- NIOSH – PAPR & SAR Type C
- ANSI – S3.19 Hearing Protection (Only in conjunction with 18-533 earmuffs).
- ANSI – Z89.1 Hard Hat Protection – Type 1 Class C
- ANSI – Z87+ Eye & Face Protection
- BSI Certified Product
- AS/NZS 1716:2012, BMP #714303 – Respiratory Protection.
- AS/NZS 1801:1997, BMP #714306 – Hard Hat Protection (Not all configurations conform to this standard. Please visit rpbsafety.com for more details).
- AS/NZS 1337.1:2010, BMP #714304 – Eye & Face Protection.
- CE2797
- EN14594:2005 3B, EN12941:1998 +A2:2008 TH3/2/1 P R SL – Respiratory Protection.
- EN352-3:2002 – Hearing Protection.
- EN397:2003 + A1:2009 – Hard Hat Protection
- EN166:2001 Class 1B – Eye & Face Protection
- CSEI Certified Model
- CSA Z94.3-15 – Eye & Face Protection – Class 7D Respirator Facepiece.
The aluminized fabric is tested based on the ASTM F1939 test method and rated to temperatures up to 427oC and a radiant temperature of 1649oC. The fabric is an O-PAN/Aramid constructed in a ripstop weave.
Metal Spray Helmet Product Comparison
|
|
|
|
| Z-Link | Z-Link+ | Z-Link Radiant Heat | |
| Ideal for | Metal Spraying, Grinding, Oxy Cutting | Metal Spraying, Heavy Industry, Ship Building, Rail Industry | Metal Spraying, Foundry, Steel Mills |
| Air Supply | Supplied Air (SAR) or Powered Air (PAPR) | Supplied Air (SAR) or Powered Air (PAPR) | Supplied Air (SAR) or Powered Air (PAPR) |
| Respirator Type | Grinding | Welding/Grinding | High Heat |
| Available Attachments & Accessories |
|
|
|
| Head Protection | Integrated Hard Hat | Integrated Hard Hat | Integrated Hard Hat |
| Hearing Protection | Clip-in Earmuffs | Clip-in Earmuffs | Clip-in Earmuffs |
| Eye Protection | Yes | Yes | Yes |
| Cape/Hood Types | Zytec FR | Zytec FR | Aluminized FR |
| Assigned Protection Factor | 1000 | 1000 | 1000 |
| Top-rated Feature | Can be used for multiple applications. | Removable weld visor, hard hat. | High heat resistant. |
| Operating Temperature | -10oC to 60oC | -5oC to 55oC (ADF Lens) | -10oC to 93oC |
NOTE: Z-Link+ and Z-Link Radiant Heat both require Z-Link framework

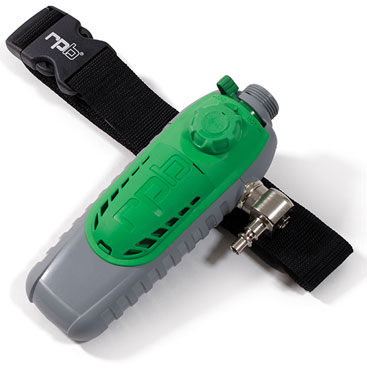

Supplied Air Solutions – C40 Climate Control Device
The C40 Climate Control Device is a belt mounted air regulator and temperature control unit for the RPB Z-Link Metal Spray Helmets. This unit allows the user to cool incoming air by up to 29oC or heat it by 18oC, as well as increase the flow of air coming into the respirator, increasing comfort, productivity and safety. It also features a swivel air inlet fitting.
The supplied air and air monitoring range gives users confidence in the air they breathe.
Detecting toxic gases, filtering the air supply, and controlling supplied air temperatures removes safety concerns and discomfort, enabling users to sustain a higher level of performance for longer.
Features & Benefits
The C40 heats and cools supplied air to suit your environment. Cool incoming air by up to 29oC or heat it by up to 18oC or any range in between, simply by sliding the lever.
- Easily control your temperature with the slide of a lever.
- Air inlet swivels to 360o to sit comfortably on your hip.
- Made from lightweight, robust materials (weighs 329g including belt).
- The C40 increases your safety and comfort, by keeping you at your optimum temperature, so you don’t suffer heat exhaustion or chilling.
- Exhausted air in directed away from your body, eliminating the need for a heat shield.
- The C40 consumes approximately 20-25CFM to operate. 10-14CFM goes to the operator and approximately 10CFM is expelled out the front vent. This is how a vortex cooler separates the hot and cold air.
Specifications
| Type | Supplied air regulator and climate control device |
| Flow Rate and Airline Requirements |
|
| Operating Temperature | -10oC to 60oC |
| Storage Temperature | -10oC to 45oC <90%RH |
| Dimensions | 72.4 x 198.5 x 62.3mm (W x H x D) |
| Weight |
Without Belt: 277g |

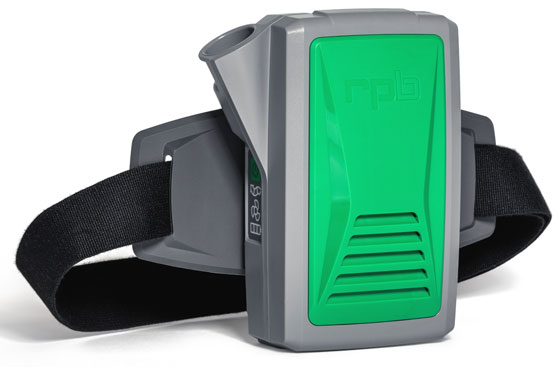

PX5 Powered Air Purifying Respirator
The RPB PX5 is a battery-powered air purifying respirator fan unit which draws in contaminated air from the users immediate vicinity, passing it through internal filters, and supplying the filtered air to the RPB Z-Link Metal Spray Helmets. The unit has built-in audible, visual and physical safety alarms which alert the user when filters need to be replaced, or there is an obstruction of airflow. This type of respirator is not appropriate for every environment or contaminant.
The RPB PX5 changes the way people experience clean filtered air across multiple industries – from medical and chemical settings, through to the profoundly harsh environments of foundries.
The PX5 is the result of years of product refinement, designed with new functional capabilities, increasing performance while enhancing the way you experience comfort. The PX5 redefines what it means to be a powered air purifying respirator.
Boasting a robust yet compact design, the PX5 weighs just 1.15kg as a complete system. With strategic weight distribution through its vertical mounting position and support from our flexi-belt system, the PX5 contours to the user to maximise comfort and stability.
Designed with sleek considered surfaces, and a quick release mount lock system for ease of decontamination, the PX5 is certified to IP65 rating in use and IP67 rating with cleaning kit in place.
Features & Benefits
Weighing just 1.15kg, the sleek and compact design maximises comfort, vertically mounting contour to the wearer and is supported by a flexi-belt system.
- Visual, audible and vibrating alarms alert you when the battery level is low, or when airflow falls below the minimum requirements due to the filter needing replacing or when airflow is obstructed.
- Intuitive LED user interface indicates airflow, fan speed, and battery level.
- The PX5 unit attaches to the flexi-belt (fitted with either standard or FR rated belt).
- Filter safety – The filter door cannot mount to the unit unless a filter is fixed in place.
- Ingress protection – With a completely sealed, the PX5 has been certified to IP65 rating in use and certified to IP67 rating with cleaning kit in place.
- HE Filter – Manufactured from ULPA media which removes up to 99.97% of particulates down to 0.12 microns.
- Replace the pre-filter daily and install spark arrestor to protect and extend the life of the main filter.
- Sealed inside the unit during operation, the long-life lithium-ion battery is protected from moisture and will not disconnect or bump off while operating.
Specifications
| Type | Powered air purifying respirator |
| Air Flow |
|
| Operating Noise | 85 dBA at 104mm |
| Battery Charging | 03-855 Standard Battery: 5 hours
300+ charge cycles with battery life greater than 80% of original 03-856 High Capacity Battery: 5 hours 500+ charge cycles with battery life greater than 80% of original |
| Power Supply | Battery: Rechargeable lithium-ion battery
Charging: 240V |
| Battery Run Times |
With HE Filter
Other filters are available – contact us for more information |
| Operating Temperature |
-20oC to 50oC |
| Storage Temperature |
-10oC to 45oC |
| Water and Dust Ingress Protection Rating |
Certified to IP65 rating in use and certified to IP67 rating with cleaning kit in place. |
| Weight |
1.15kg |
Certifications
- ISO9001 Certified Company
- NIOSH – in conjunction with approved respirator.
- CE2797 – EN12941:1998 +A2:2008 TH3 P R SL – Respiratory Protection.
- AS/NZS 1716:2012 BMP #714303 – Respiratory Protection.
Attachments & Accessories

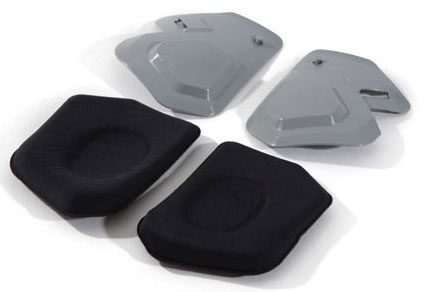

Comfort-LinkTM
The RPB Comfort-Link padding system provides further options to tailor the fit of your respirator, giving you total control over the helmet and head placement for optimum comfort.
Quiet-LinkTM
The Quiet-Link earmuffs fit directly into the Z-Link with no modifications required, providing additional hearing protection for noisy environments. NRR rating of 25dB.

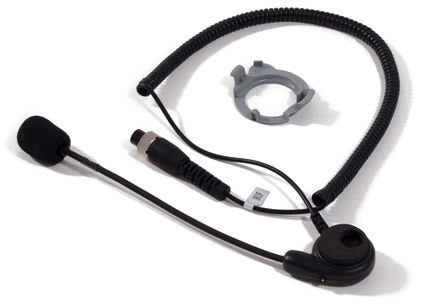

Comms-LinkTM
This in-helmet communication system is compatible with most radios and allows you to communicate with teams members with ease.

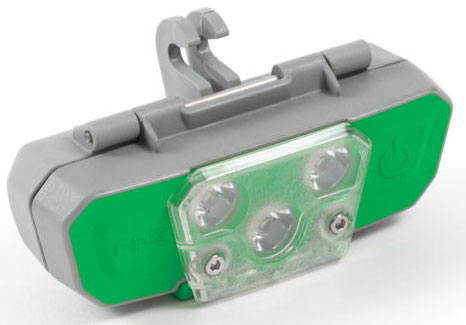

Vision-LinkTM
Ideal for when working in dark environments, the RPB Vision-Link mounts securely to the Z-Link, and provides 650 lumens of concentrated light to your field of view.

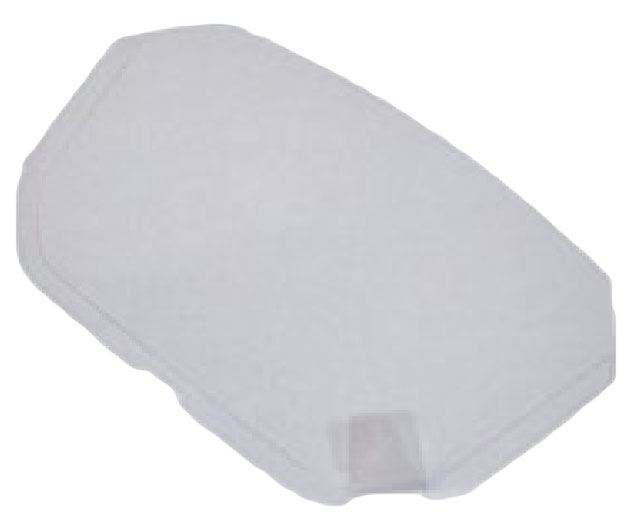

Tear-Off Lenses
Available in packs of 50.
For more information on our equipment, call us on 07 3823 1004, or email us using our contact form.
