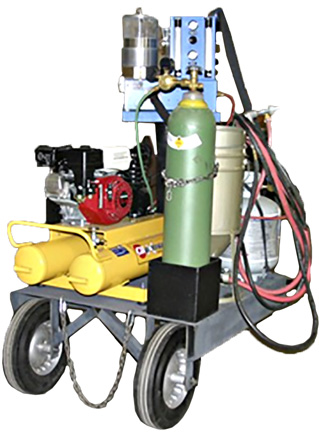

The PG-550 is a light weight, portable, easy to use, cost effective Flame Spray system. With no electricity required, the system can be operated with either Propane, Acetylene or Hydrogen fuel. The PG-550 can spray Nylon (rilsan), LD & HD Polyethylene, Halar, Kynar, Teflon, Polyamide, Rubber and Polypropylene. The system can also be employed for the application of metals and ceramics. The PG-550 can be supplied with internal extension nozzle, cooling air caps, tool post holders, regulators, filters and hoses.
Features
- Light weight.
- Portable.
- Easy to use.
- Cost-effective.
- Fuel options: Propane, Acetylene, Hydrogen.
- Quick change nozzle.
- Low maintenance.
- No moving parts.
Typical Applications

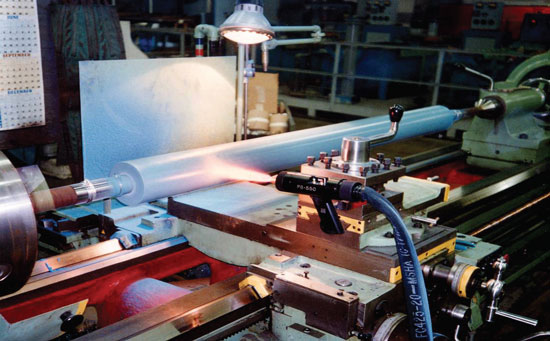

- Printing rolls.
- Pulp mills.
- Food equipment.
- Water tanks.
- Decorative.
- Impellors.
Spray Materials
The PG-550 sprays the following Metal Spray powders:
Pure Metals
- Nickel
- Aluminum
- Copper
Alloys & Clad Materials
- Nickel Graphite.
- Self Fluxing Alloys.
- 316 Stainless.
- 420 Stainless.
- 304 Stainless.
- Aluminum Bronze.
- Monel.
- NiChrome 80/20.
- Nickel Aluminide 95/5.
- Iron Aluminum.
- Steel Hastelloy C.
- Chrome Carbide NiChrome.
- Tungsten Carbide 88/12.
Ceramics
- Aluminum Oxide.
- Aluminum Titania.
- Titanium Oxide.
Polymers – Plastics
- Nylon – (Rilsan).
- Polyethylene L.D.
- Polyethylene H.D.
- UHMWPE.
- Halar.
- Kynar.
- Teflon.
- Polyamide.
- Rubber.
- Polypropylene.
- Abcite (Dupont).
Related Flame Spray Equipment
You may also be interested in the Spray Jet 88.
For more information on our Metal Spray equipment or consumables, call us on 07 3823 1004, or email us using our contact form.
