Metallisation’s lightest, most flexible arc spraying system yet!
- Powerful & versatile.
- Sturdy & robust.
- Outstanding performance.

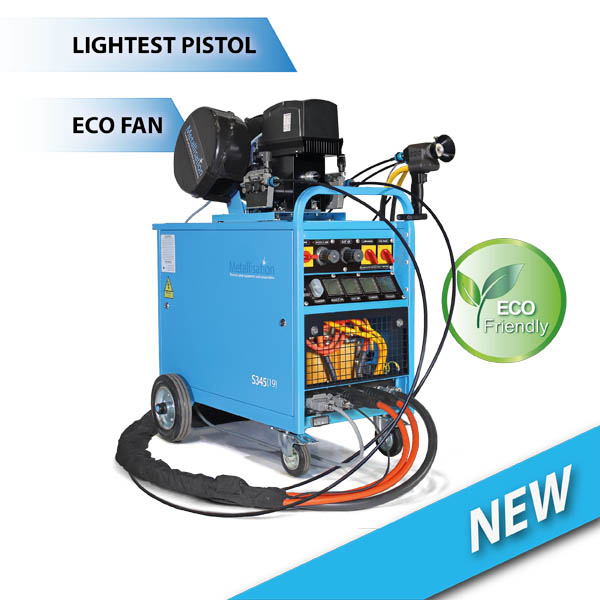

A complete arc spraying system combining the NEW ARC 145P push pistol & NEW (19) Model 250/350 Amp Energiser.
Metallisation’s desire for continuous improvement, alongside customer feedback has led to the development of their latest range of ARC 145 push systems.
- The new ARC145P pistol includes many parts that are industrial 3D printed from a lightweight, carbon fibre reinforced plastic.
- This makes the pistol lightweight for the operator but incredibly strong and durable.
- Metallisation have retained their proven Arc geometry but have created a pistol that is virtually maintenance free.
- The energiser and drive unit now feature robust, industrial connections as standard.
- Current adjustment is via a new, dust-proof push button which also incorporates fault status feedback.
- The drive unit has an additional top set of driven rollers for a robust wire feed.
- The latest trolley is compact and designed to keep the supplies connections out of the spray area and free from dust.
All of this combined with Metallisation’s high quality supplies packages and high performance rates makes our range of push systems the easiest to use on the market.
Features
145P Push Pistol
The pistol has been designed to give consistent throughputs with high coating quality at 350A. Metallisation technology has taken the conventional arc spray pistol to new dimensions, making it smaller, lighter, more ergonomic and stronger than ever, giving superior coating ability.
- Push button design for simple operation.
- Carbon fibre toughness for the harshest environments.
- Ergonomic grip for true comfort.
- Contact tube and tip arrangement.
- Industrial 3D carbon fibre printed.
- Strength, durability and comfort combined.
- Light weight reduces operator fatigue.
’19’ Series Energiser
The energiser has been specifically designed for those users who are likely to spray a varying range of materials. Ideally suited for the Anti-corrosion industry and General Engineering Workshop.
- Dust proof current control and closed loop indicator.
- LED and ethernet fault alarm feedback.
- Sturdy control connections.
- New case design and rear handle.
- IP65 Gorilla Glass LED gauges.
- Claw and whip-check air connection on rear.
- 100% duty cycle.
- Industrial connections.
- Energy saving AUTO-STANDBY mode.
- Fan on demand.
’19’ Series Drive Unit
The drive unit is now more compact than ever, but that doesn’t mean it’s any less durable. The addition of a top set of driven rollers provides an even more reliable, positive wire feed. Quick release MIG covers make it easy to disassemble & fit through small manholes. Alternatively there is the option to dispense from layer spools which also features the quick release feature.
- Quick release MIG carriers – for feeding in small access manholes.
- Additional top set of driven rollers.
- Heavy duty (0.55kW) electric inverter drive.
- Profiled drive rollers for 1.6, 2.0, 2.3 or 2.5mm.
- Wire specific rollers.
- Grooved and smooth sets.
- Reversible for long life.
- Compact design.
Supplies Packs
The system supplies connect from the energiser or trolley to the pistol. They include the power, air & control cables & wire conduits in the suitable size for the system. Contact us to discuss supplies lengths most suitable for your application.
- Lengths to suit.
- Industrial connections as standard.
- Twist and lock power cables and quick release air hose.
- Robust 5m conduits.
- Robust manifold & cover.
- Lightweight air-cooled conductors.
Applications
- Bearing and seal surfaces.
- Boiler corrosion coatings.
- Bridges (concrete and steel).
- Engineering bond coats.
- Fences / gates.
- Offshore/oil & gas.
- Polystyrene.
- Shipbuilding/marine.
- Structural steelwork.
- Vessels and enclosures.
- Wear coatings.
- Wind turbine towers.
Related Arc Spray Systems
Compare this system with the Arc Spray 145(19)/i450 System and the Arc Spray 150P Push System.
