Introducing the 145(19)/i450 System
The worlds lightest, most productive thermal spray machine ever produced!
- Extremely portable
- Friendly control panel
- Multi-process capabilities

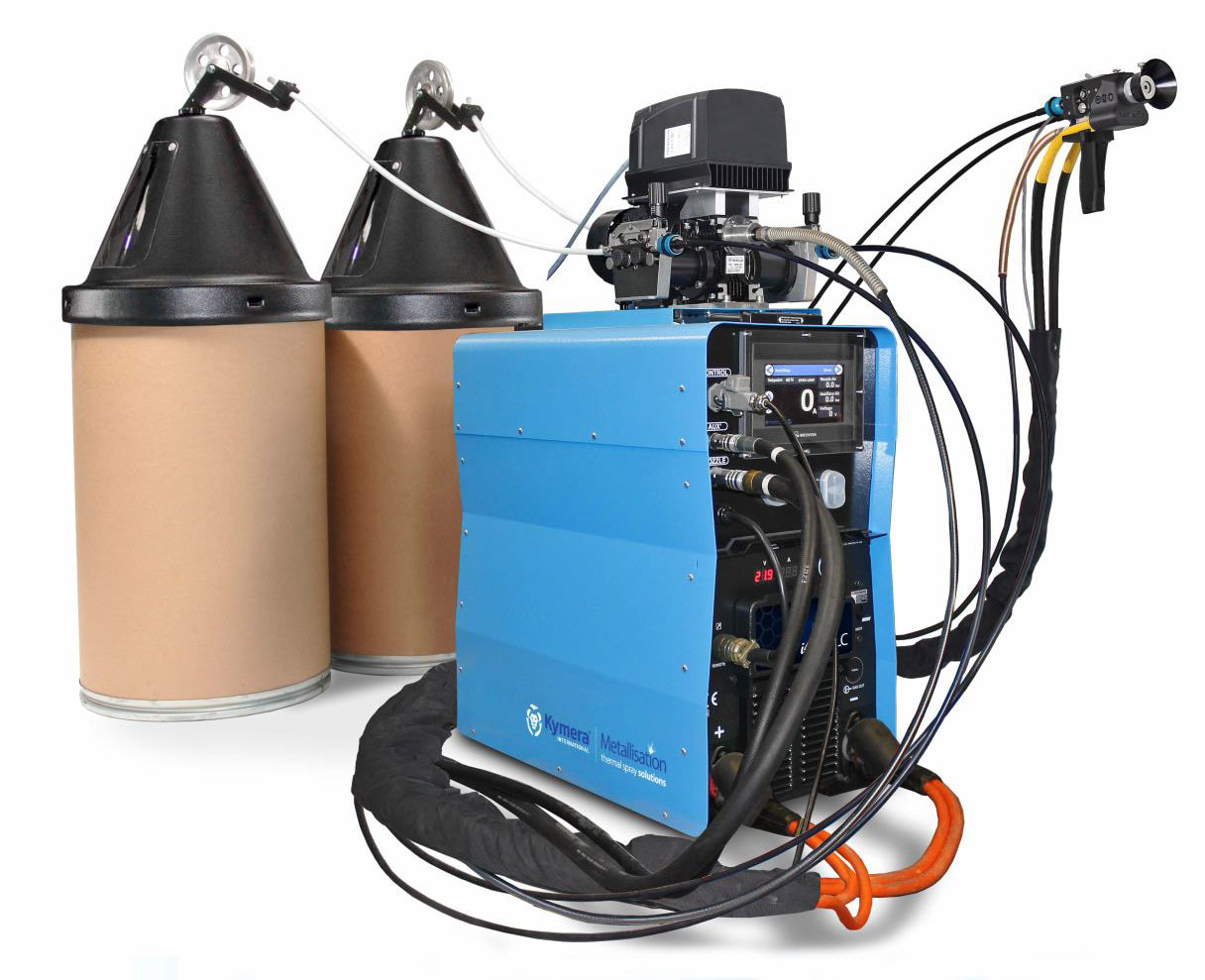

A complete arc spraying system combining our ARC145(19) pistol & NEW 450 Amp Energiser.
Introducing the NEW ARC145(19)/i450.
The most innovative arcspray technology available. All the benefits of industrial additive manufacturing; lighter design, incredibly strong, but now combined with a lightweight and slimline inverter energiser.
This advancement in thermal spray technology incorporates an Inverter power source coupled with computerised controlled circuit and intuitive software to allow you full control optimising any arc spray.
A lightweight pistol for maximum operator comfort and a newly designed compact heavy-duty industrial drive system to allow flexibility for long supplies.
Designed with state-of-the-art features and options, the energisers sophisticated control technology enables quick and easy switching between closed loop and open loop spraying. A strong, reliable technical system that offers significant advantages in terms of speed, flexibility in different applications and processes, repeatability and accuracy.
Features

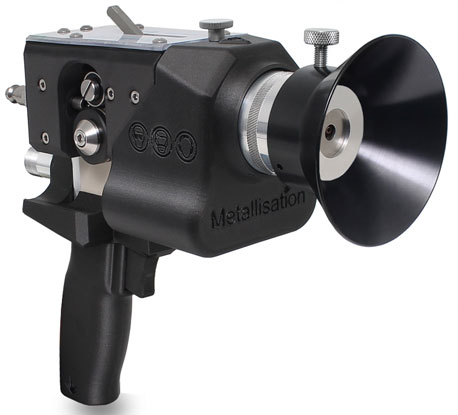

145(19) Pistol
The pistol has been designed to give consistent throughputs with high coating quality at 350A. Thanks to the introduction of 3D printed parts it is now even lighter, whilst retaining its heavy-duty, robust and compact design. The synchronised wire drive allows for longer supplies whilst spray voltage is measured at the pistol for improved reliability and diagnostics.
- Industrial 3D printed parts.
- Carbon fibre toughness for the harshest environments.
- Lighter but still robust.
- Spray voltage measured at pistol.
- Ergonomic grip for true comfort.
- Reversible U-Rollers.
- Small pistol.
- Contact tips & air concentrator.
Inverter Energiser
- Dust proof current control & closed / open loop switching.
- Wire Usage and spray time monitors.
- Sturdy power connections.
- Error reporting notifications.

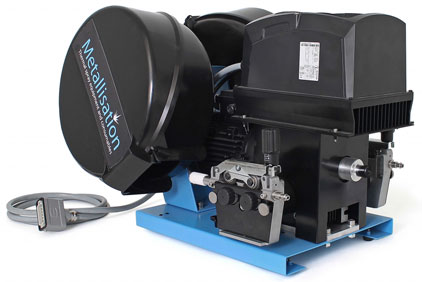

’19’ Series Drive Unit
- Compact design.
- Quick release MIG carriers – for feeding in small access manholes.
- Lighter weight.
Supplies Packs
The system supplies connect from the energiser or trolley to the pistol. They include the power, air & control cables & wire conduits in the suitable size for the system. Contact us to discuss supplies lengths most suitable for your application.
- Lengths to suit.
- Industrial connections.
- Robust manifold & cover.
- Lightweight cooled conductors.
Applications
- Structural Steelwork
- Oil/Gas platforms
- Pipes and vessels
- Internal vessel / boilers
- Gates / fences
- Architectural fabrications
- Bridges.
Related Arc Spray Equipment
Related equipment includes the
Arc Spray 145P Push System
and the
Arc Beam Concentrator.
For more information on our equipment, call us on 07 3823 1004, or email us using our contact form.
