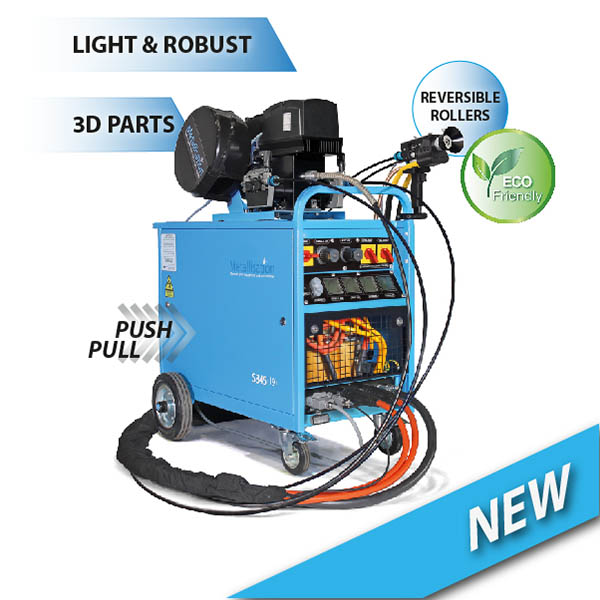

Introducing the ARC145(19), a complete arc spraying system combining the NEW ARC145(19) pistol & NEW (19) Model 250/350 Amp Energiser.
Designed with state-of-the-art features and options, the energisers sophisticated control technology enables quick and easy switching between closed loop and open loop spraying. The display screens show clear and concise details for parameter feedback. These details are monitored at over 500 times/sec to enable superior coating results.
The most comprehensive arc spray unit to date!
- Powerful & versatile.
- Sturdy & robust.
- Outstanding performance.
Completing the ARC 145 family of robust versatile twin arc spray systems is the NEW (19) range ARC 145.
Similar to the pioneering ARC 145P pistol, the ARC 145(19) Push Pull system utilises all the benefits that industrial additive manufacturing bring; lighter design but incredibly strong.
The ARC 145(19) provides both application and production versatility; a lightweight pistol for maximum operator comfort and a newly designed compact heavy-duty industrial drive system to allow flexibility for long supplies.
Features
145(19) Pistol
The pistol has been designed to give consistent throughputs with high coating quality at 350A. Thanks to the introduction of 3D printed parts it is now even lighter, whilst retaining its heavy-duty, robust and compact design. The synchronised wire drive allows for longer supplies whilst spray voltage is measured at the pistol for improved reliability and diagnostics.
- Industrial 3D printed parts.
- Carbon fibre toughness for the harshest environments.
- Lighter but still robust.
- Spray voltage measured at pistol.
- Ergonomic grip for true comfort.
- Reversible U-Rollers.
- Small pistol.
- Contact tips & air concentrator.

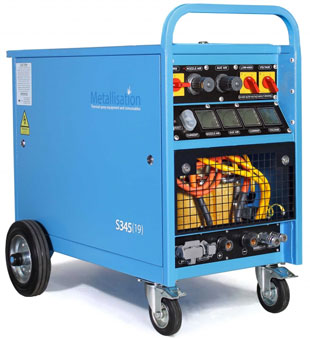

’19’ Series Energiser
The energiser has been specifically designed for those users who are likely to spray a varying range of materials. Ideally suited for the Anti-corrosion industry and General Engineering Workshop.
- Dust proof current control and closed loop indicator.
- LED and ethernet fault alarm feedback.
- Sturdy control connections.
- New case design and rear handle.
- IP65 Gorilla Glass LED gauges.
- Claw and whip-check air connection on rear.
- 100% duty cycle.
- Industrial connections.
- Energy saving AUTO-STANDBY mode.
- Fan on demand.
’19’ Series Drive Unit
The drive unit is now more compact than ever, but that doesn’t mean it’s any less durable. The addition of a top set of driven rollers provides an even more reliable, positive wire feed. Quick release MIG covers make it easy to disassemble & fit through small manholes. Alternatively there is the option to dispense from layer spools which also features the quick release feature.
- Quick release MIG carriers – for feeding in small access manholes.
- Additional top set of driven rollers.
- Heavy duty (0.55kW) electric inverter drive.
- Profiled drive rollers for 1.6, 2.0, 2.3 or 2.5mm.
- Wire specific rollers.
- Grooved and smooth sets.
- Reversible for long life.
- Compact design.
Supplies Packs
The system supplies connect from the energiser or trolley to the pistol. They include the power, air & control cables & wire conduits in the suitable size for the system. Contact us to discuss supplies lengths most suitable for your application.
- Lengths to suit.
- Industrial connections as standard.
- Twist and lock power cables and quick release air hose.
- Robust 5m conduits.
- Robust manifold & cover.
- Lightweight air-cooled conductors.
Applications
- Bearing and seal surfaces.
- Boiler corrosion coatings.
- Bridges (concrete and steel).
- Engineering bond coats.
- Fences / gates.
- Non-slip coatings.
- Offshore/oil & gas.
- Shipbuilding/marine.
- Structural steelwork.
- Vessels and enclosures.
- Wear coatings.
- Wind turbine towers.
For more information on our equipment, call us on 07 3823 1004, or email us using our contact form.
